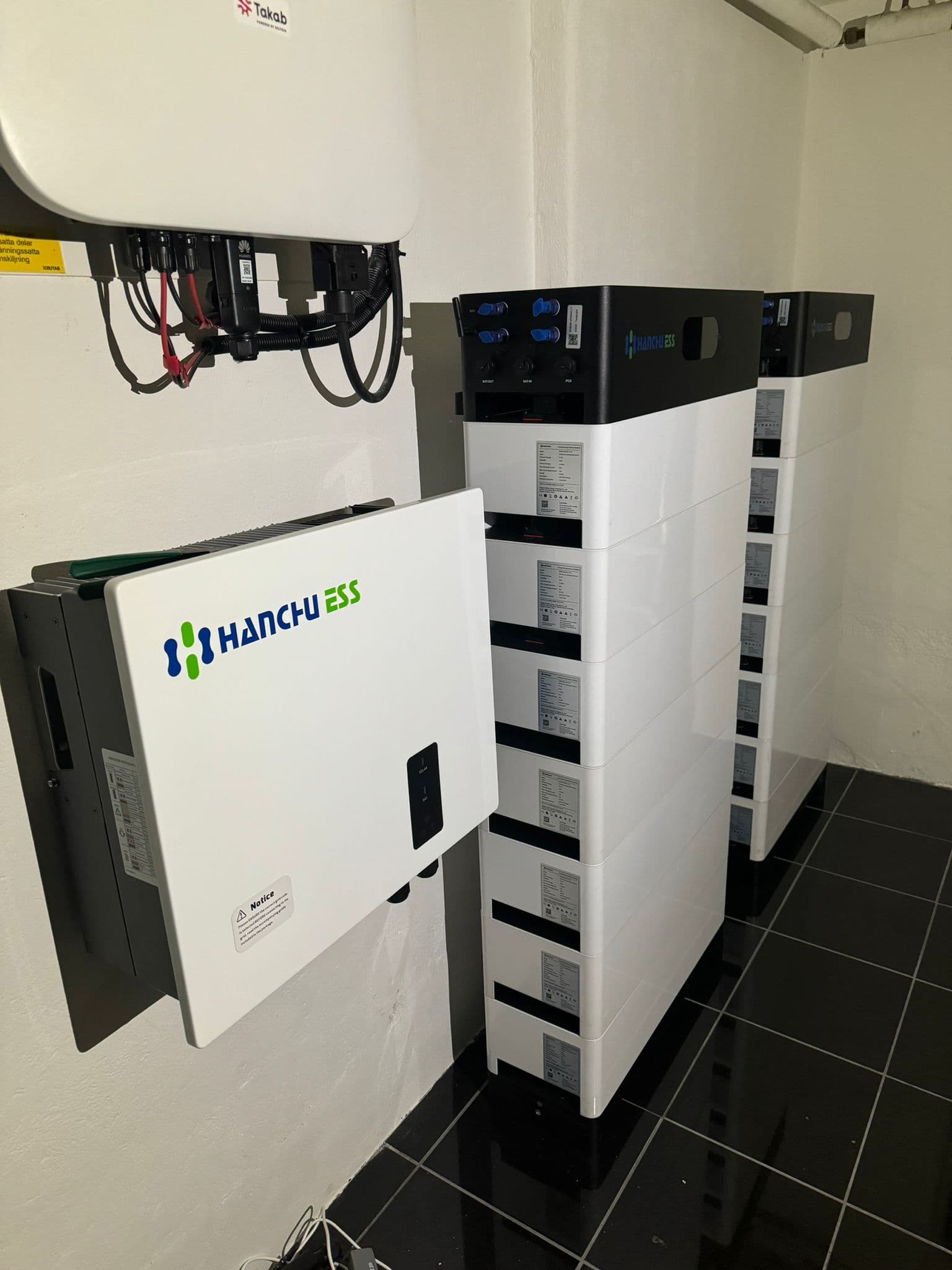

Hanchu Package 10 or 12 kW Inverter with 16.2 kWh Battery Capacity This system is ideal for households seeking a reliable and efficient energy storage solution, with flexible capacity for daily energy needs. Inverter: HESS-HY-T-10K

Rated Power: 10 kW
Maximum PV input: 15 kWp
MPPT Voltage Range: 200 V to 950 V
Number of MPPTs: 2, with 1 string per MPPT
Maximum Input Current per MPPT: 20 A
Efficiency: Up to 98.4%
Protection class: IP66, for outdoor use
Communication: CAN, RS485, WiFi, LAN, 4G, Bluetooth
Weight: 24.5 kg
Dimensions (W x H x D): 545 x 465 x 205 mm

Battery: 6 x 2.7 kWh Modules (HOME-ESS-HV-2.7K)

Total Capacity: 16.2 kWh (for 6 modules)
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage: 307.2 V
Maximum charge/discharge current: 50 A
Depth of Discharge (DoD): 95%
Protection class: IP65
Weight per Module: 25.4 kg
Dimensions per Module (W x D x H): 650 x 225 x 1214 mm

Benefits:

High Efficiency: The inverter maximizes energy production.
Flexible Capacity: Modular batteries that can be scaled as needed.
Ease of use: Easy monitoring via the Hanchu ESS app.

PRODUCT SHEET INVERTERS 10 & 12 kW

MANUAL INVERTER 10 & 12 kW

INSTALLATION GUIDE INVERTERS 10 & 12 kW

PRODUCT SHEET BATTERY 2.7 kWh

MANUAL 2.7 kWh

INSTALLATION GUIDE Hanchu Package

Hanchu Package 12kW / 16.2kWh
