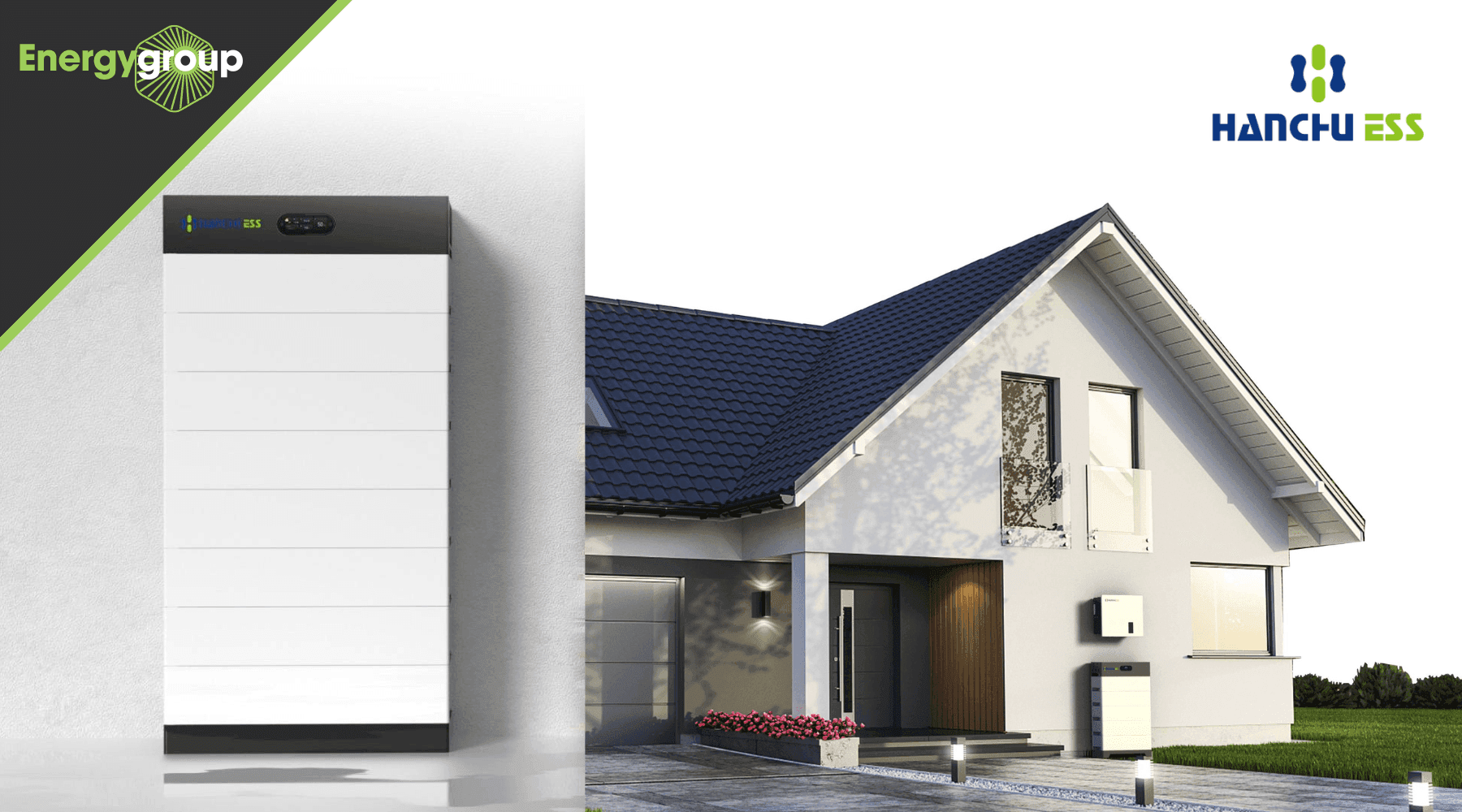

Battery pack Small with 10.8 kWh Battery capacity incl. BMS Hanchu's Villa Battery Pack with 4 Pieces of 2.7 kWh High Voltage Battery Modules is a state-of-the-art energy storage solution, designed to offer high flexibility, safety, and intelligent control for home and small business applications.

Leading Technology

Compact and modular design: Allows for greater flexibility in installation and operation.
Higher DOD (Depth of Discharge): 95% for more usable energy.
Extreme lightness and thinness: Facilitates quick installation by one person.

Intelligent Platform

Predictive and problem-solving service: Online services for fast and timely problem solving.
Smart power management: 24/7 real-time monitoring and remote diagnostics or upgrades.

Ultra Security

Built-in Aerosol System for Fire Protection: Improved fire safety.
Improved heat dissipation structure: For longer service life and safe operation.
High-quality lithium iron phosphate (LiFePO4): For long life cycle.

Technical Specification

Module Energy: 2.7 kWh
Module Weight: 25.4 kg
Operating voltage: 144-460.8V depending on the number of modules
Maximum charge/discharge current: 50A
Depth of discharge (DOD): 95%
Cyclic life: >6000 cycles at 25°C
Protection class: IP65
Charging temperature: -5 to 55°C
Discharge temperature: -20 to 55°C
Communication: CAN/RS485/WIFI/Bluetooth
Safety and transport certification: IEC 62619/IEC 62477/CE, UN38.3

Design and Installation

Modular system: Supports up to 12 devices in series.
Natural convection: For cooling without the need for external fans.
Protection from ambient conditions: Operates in humidity levels between 5% and 95%, and at altitudes below 2000 meters.

Warranty and Support

Warranty: 10 years
Support: 24/7 cloud-based monitoring and remote support via an intelligent platform.

PRODUCT SHEET BATTERY PACK SMALL 10.8 kWh

MANUAL 2.7 kWh

INSTALLATION GUIDE BATTERY PACK SMALL 10.8 kWh

Battery pack small 10.8 kWh battery + BMS
